Available:
– LAZZARI AMPLIFIED HDr STREAMER (new !!! see below)– USB Input
– LAZZARI HDr STREAMER
The Lazzari HDr Streamer is available in two versions: Analog and Digital, so it can be used in combination with or in place of a DAC.
An innovative feature is that it uses a proprietary operating system and, even without an Internet connection, autonomously generates a private network to which you can connect your devices (computers, mobile phones) and draw on the music available on your servers.
At the same time, by choosing to connect to your Internet network, the Streamer also allows you to directly access streaming music (on Qobuz, iTunes, Tidal, Spotify, Internet Radio …) and other remote servers connected to the router.

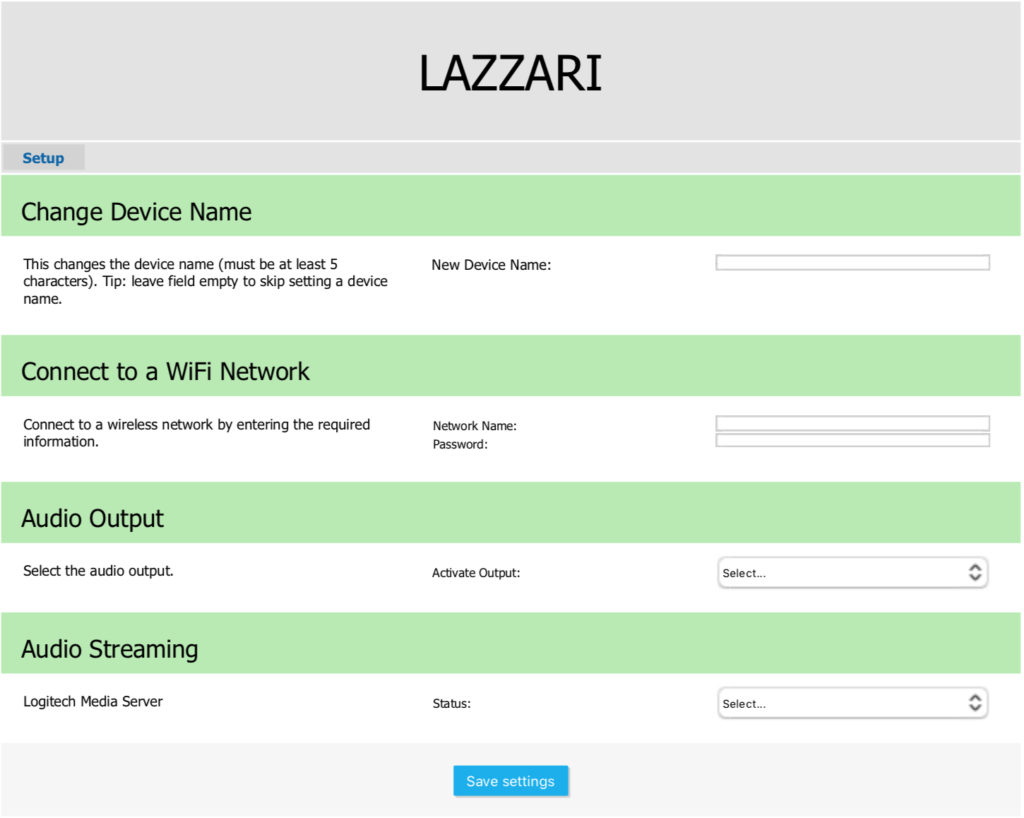

Data entry takes place through a simple and friendly web interface.
Measures: 23×17 cm only.
MAIN TECHNICAL FEATURES
streamable formats from 44.1Khz 16bit to 192Khz 24bit
5Ghz wifi system
Lan connection
micro SDcard 4 GB
fireware update even remotely

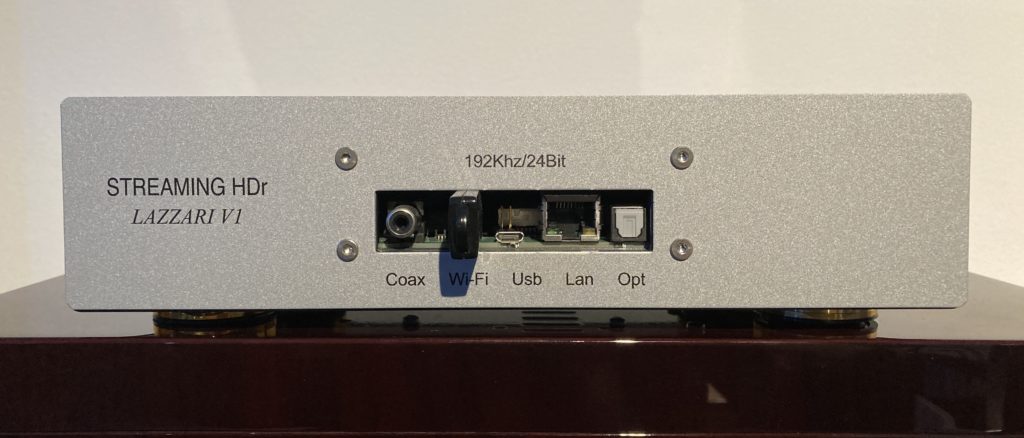

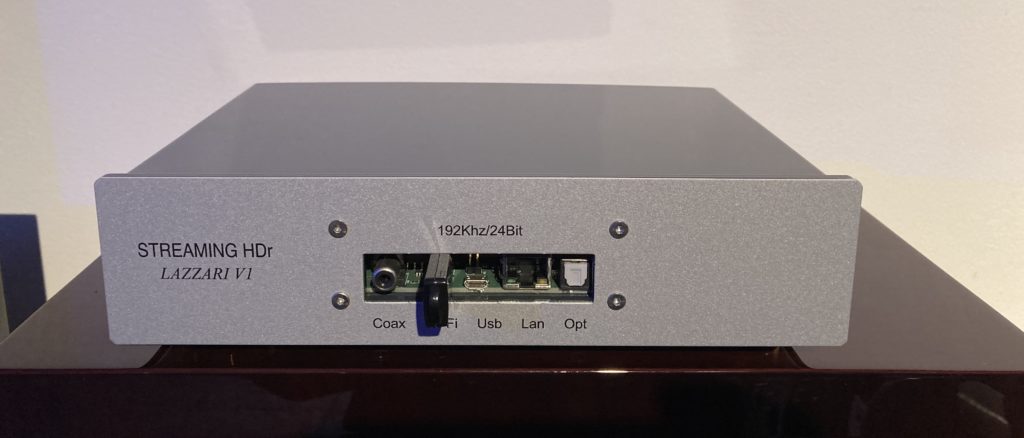

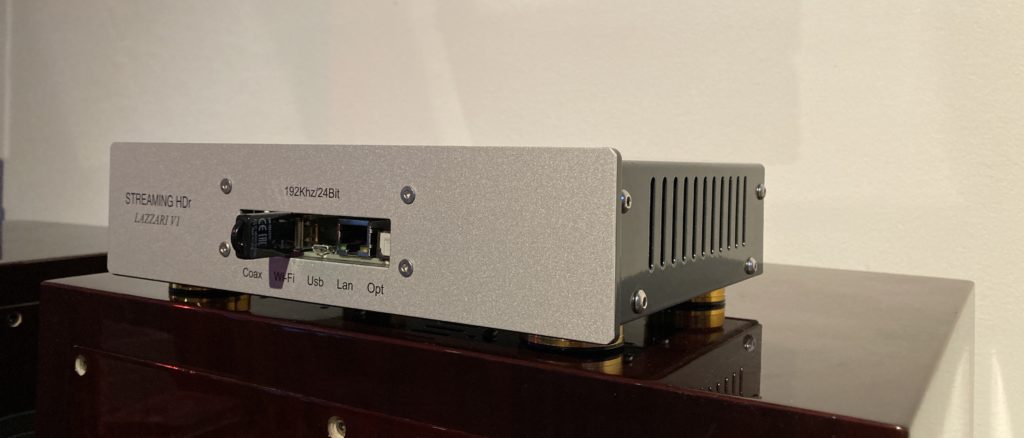

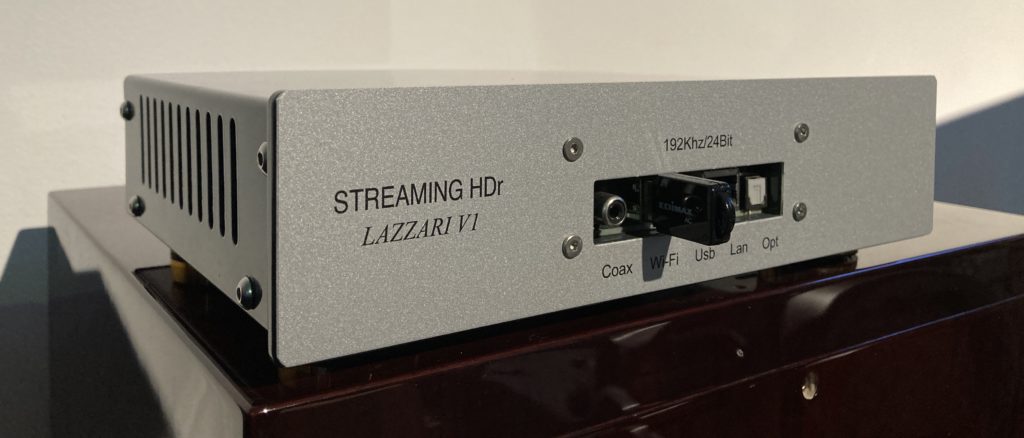

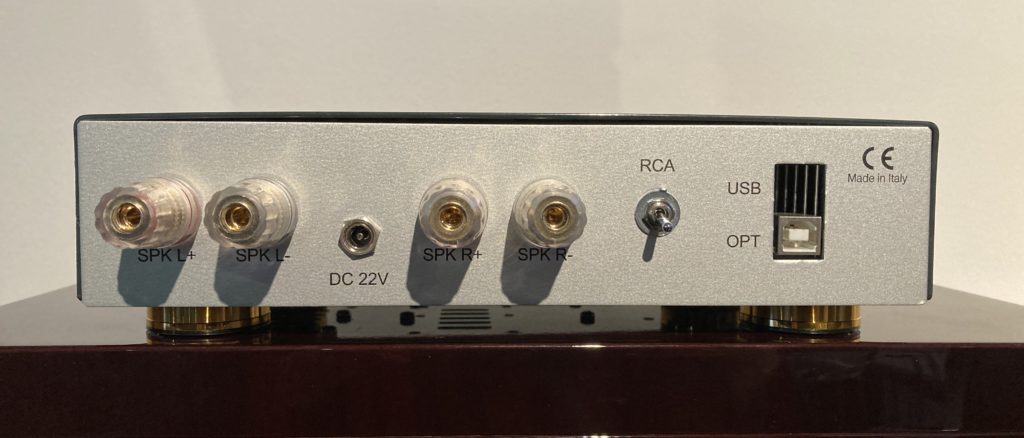

1. LAZZARI AMPLIFIED HDr STREAMER – new !!! – USB Input
Compatible with the following devices via USB port:
• Android (v 9 and 10)smartphone and tablet
• IOS with Iphone, Ipad
• Sony Walkman con USB C

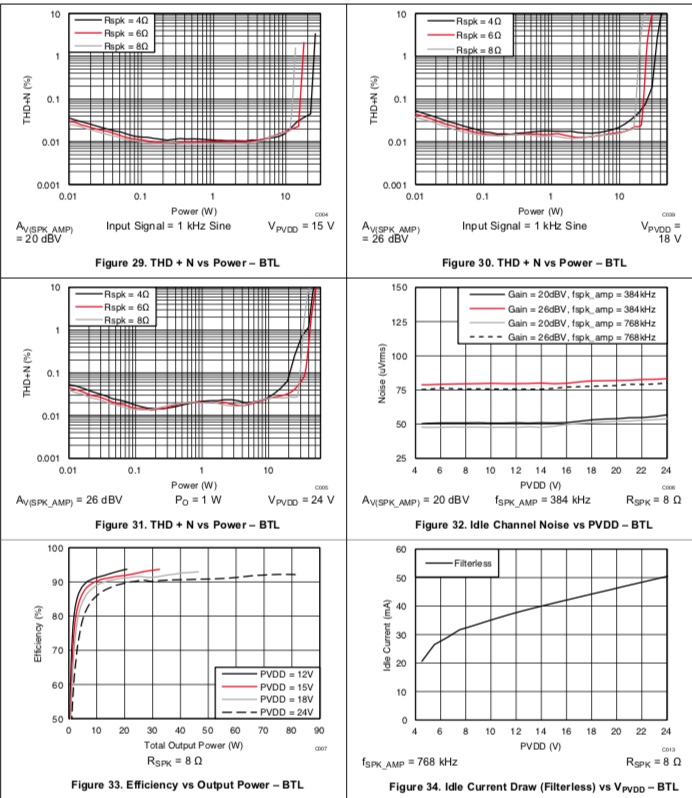

•Output power up to 2 x 40 Watt 8 hom
• Built-in MiniDSP for X-over or EQ
• Two integrated low noise LDOs for separate supply of DVDD and AVDD
• Integrated 5 V DC / DC converter
• Integrated I2C temperature sensor
• Polypropylene capacitors
• Inductors optimized for audio
• ESD protection on all input and output pins
• Over voltage protection
• Inrush current limitation
• Playback up to 192 Khz / 24 bit Better audio quality thanks to the digital I2S input and the high quality filter components on the output side.
Two ultra-low-noise LDOs power the amplifier’s IC offering reduced mains ripple.
It also incorporates advanced protection features such as over voltage and ESD protection, inrush current limitation and a solid state fuse.
Better audio quality thanks to the digital I2S input and the high quality filter components on the output side.
Two ultra-low-noise LDOs power the amplifier’s IC offering reduced mains ripple.
It also incorporates advanced protection features such as over voltage and ESD protection, inrush current limitation and a solid state fuse.
Price Vat included: € 700,00

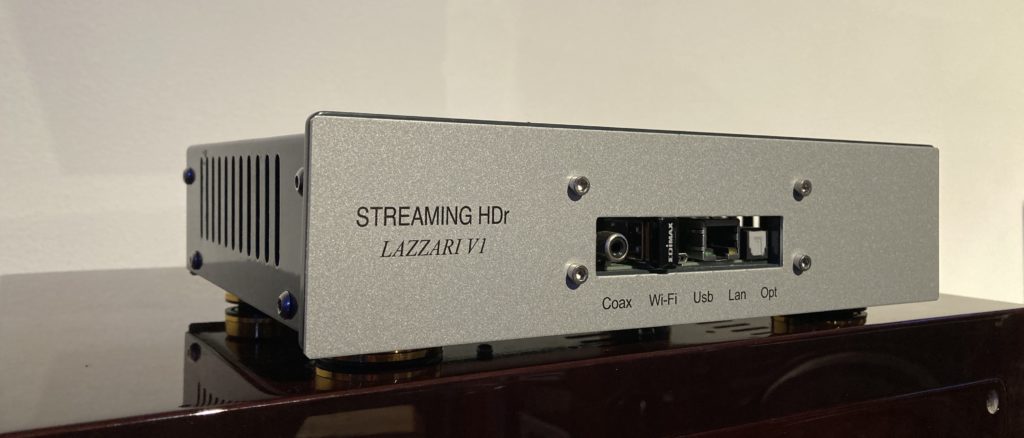

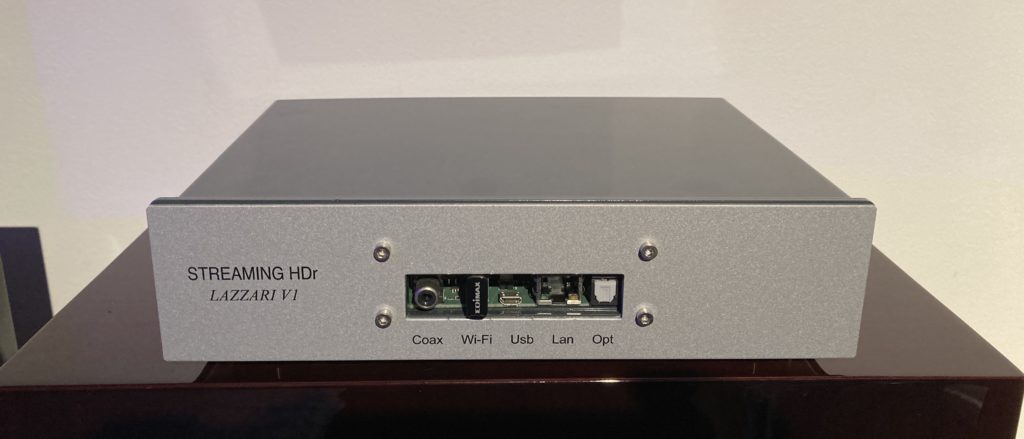

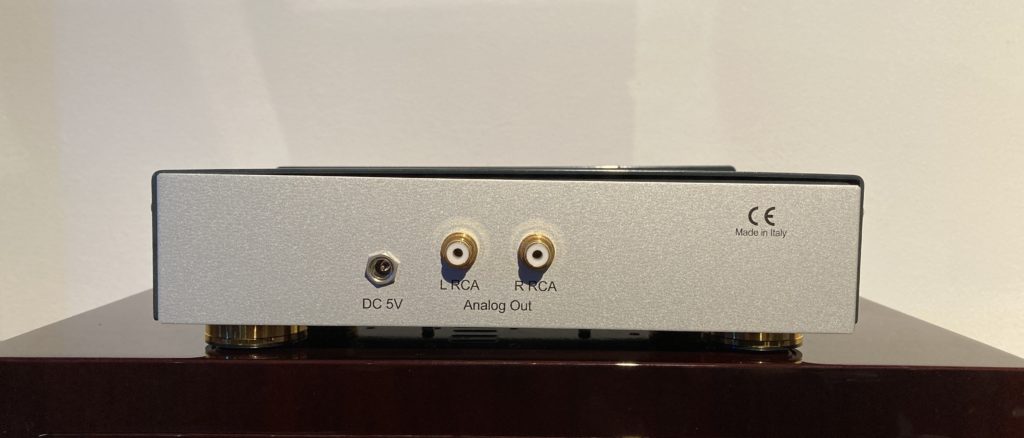

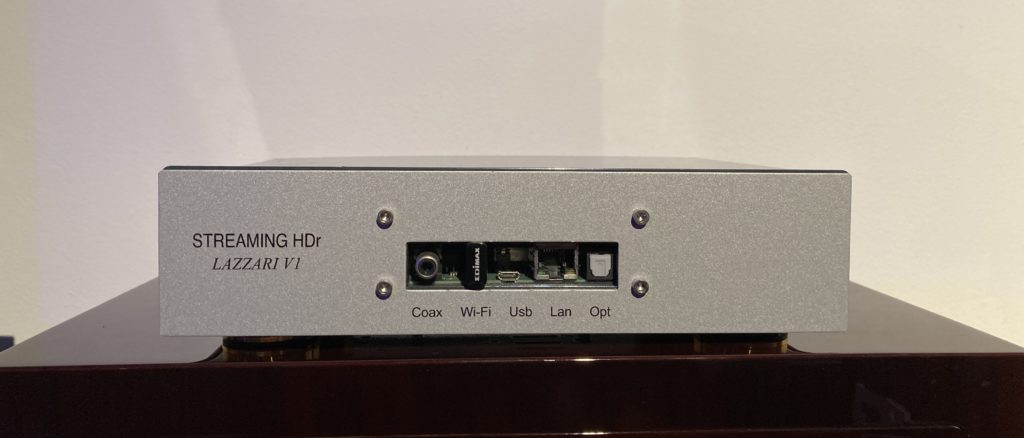

2. LAZZARI HDr STREAMER – ANALOGIC OUTPUT
- VS0 based design (NXP i.MX6ULL 1x 900 MHz + 512 MB RAM)
- TI PCM5242 DAC 32bit 352Khz with output on pin header
- 10/100 ethernet PHY with RJ45 connector
- normal sized TOSLINK connector
- isolated S/PDIF output (3V3 TTL) via RCA connector
- USB-A and USB-micro connector
- microSD card connector for OS
- all connectors on same board edge
- approximately 230 x 170 x 60mm
Price Vat included: € 550,00

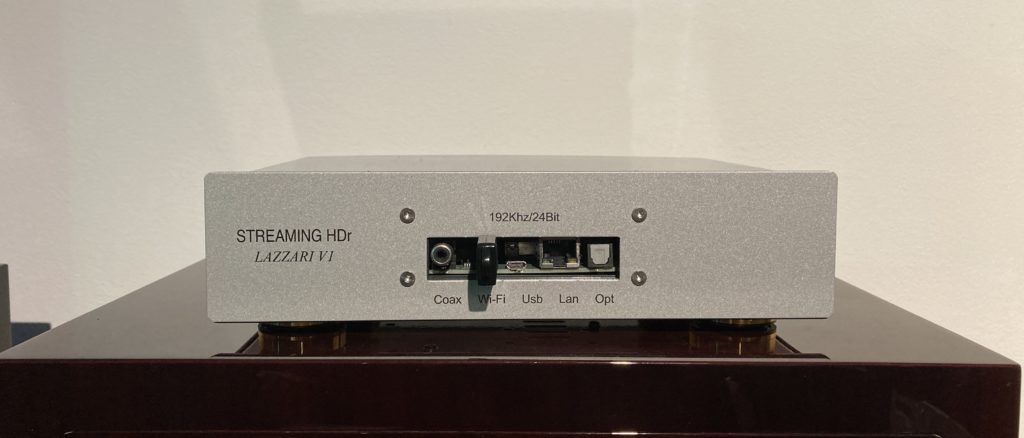

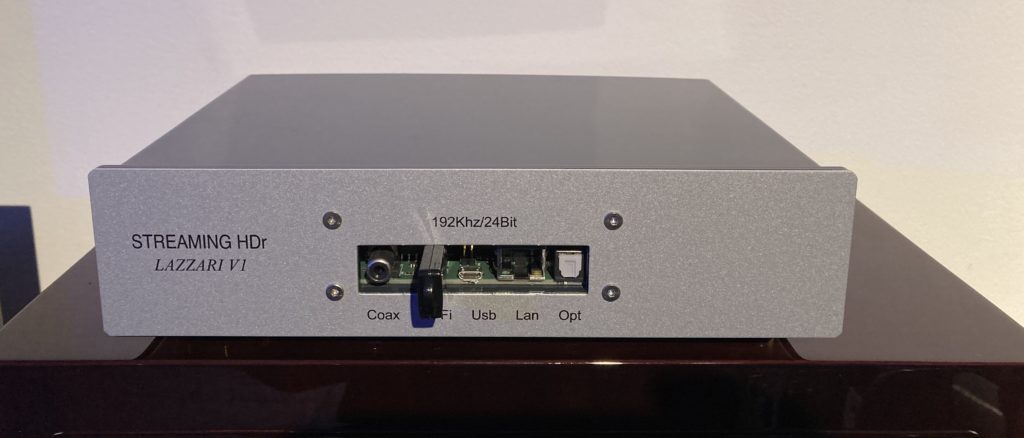

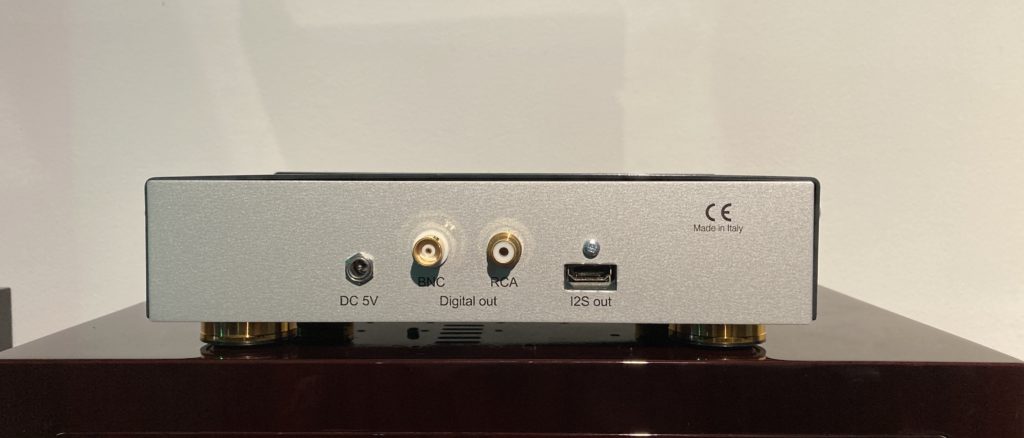

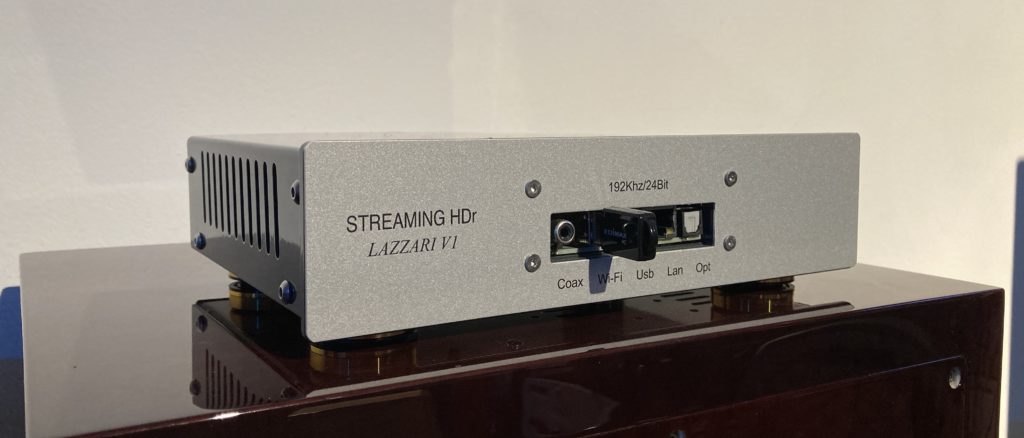

3. LAZZARI STREAMING HDr – DIGITAL OUTPUT
- VS0 based design (NXP i.MX6ULL 1x 900 Mhz + 512 MB RAM)
- 10/100 ethernet PHY with RJ45 connector
- normal sized TOSLINK connector
- isolated S/PDIF output (3V3 TTL) via RCA connector
- USB-A and USB-micro connector
- microSD card connector for OS
- all connectors on same board edge
- approximately 230 x 170 x 60mm
Price Vat included: € 450,00
INTERFACE:
AUDIO STREAMING. SISTEMA HIFIOS is the operating system that we have created from scratch to adapt perfectly to our boards. No other computer manufacturer, or similar, offers a single card operating system specially designed for audio use. No large developer community is involved.
Thanks to SISTEMA HIFIOS the configuration is simple, and all the hardware features are always perfectly supported.
Streaming services.
The most important feature of SISTEMA HIFIOS is the use of various audio streaming technologies. Thanks to the open source community we make all the main protocols available.
Currently integrated technologies:
Shairport-Sync
AirPlay audio player without CODE
Spotify Connect player without CODE
Default setting with ALSA hardware volume control
No upstream HW volume
we added ALSA HW volume control for exclusive HIFI SYSTEM
UPnP renderer without CODE for use with music servers
SqueezeLite
Logitech LMS / SqueezeBox client without CODE
Default setting with ALSA hardware volume control
Auxiliary output analogue LINE and TOSLINK I2S SPDIF
Application cmd line to activate aux inputs
Apps for Android and iOS, for even simpler configuration and use
Webradio: listen to internet radio stations worldwide
Using specific app you can control playback even in Multiroom.
Useful for wireless left / right speakers.
Audio driver.
The audio drivers for the ICs we use on the HIFIOS SYSTEM boards are written from scratch or modified for perfect integration.
An additional advantage that can have only a manufacturer who modifies and adapts his operating system for a specific application.
SISTEMA HIFIOS includes a 352KHZ 32Bit analog-to-digital converter (DAC) with integrated audio processing and volume control.
Not only we did bring that driver to our custom Linux tree, but we also slightly modified it. Preventing the DAC from entering shutdown mode.
Our network streaming not only offers digital I2S input, but also an easy-to-use signal processor (DSP). Thanks to our driver written from scratch, the volume of the hardware and the tone control have never been so simple. Just use the ALSA interface (eg alsamixer) to change the volume, bass, treble and balance. Of course, streaming services also directly use hardware volume control. And soon the tone control settings will also be available through our app.
Updating method.
Another really qualifying aspect is the delivery of updates. We have in fact found a solution that allows you not to have to remove the SD card to restore the entire system in the event of an update.
